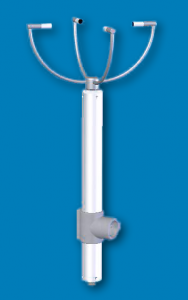

SPAS Ultrasonic Anemometer 2 axis, 15cm Probe

The “SPAS/2Y style sonic anemometer is a 2 axis, 15 cm Ultrasonic Anemometer. This sensor offers high quality performance in an less expensive package. The electronics are contained within the probe and a single cable connects it to your PC. This sensor can provide the same accuracy and resolution of the scientific Ultrasonic Anemometer, with the exception of the mechanical direction. This probe is designed to meet the needs of ultrasonic anemometer users. This meteorological instrument can be used in many different weather systems for accurate wind speed, wind direction and temperature information.

Features: No moving parts Digital outputs Time proven design Sensor emulation Replaces many other anemometers Low power Solid-state digital operation	Extras: Mounting Fixture – Allows for mounting to the end of a horizontal pipe, 1” IPS Materials – Anodized aluminum and stainless steel Environment - Capable of withstanding hostile environmental conditions Connections – A single connector on the bottom provides input power and output signals
Specifications
Range	0-65 m/s for wind speed 0-359° for wind direction -50 to +70ºC Temperature
Resolution	0.01 m/s for wind speed 0.001 m/s wind speed - optional 0.1° for wind direction 0.01ºC for temperature
Accuracy	±0.01 m/s for wind speed ±2.0° for wind direction ±1.2ºC for temperature (absolute) ±0.1ºC or ±0.05ºC for sonic temp
Operating Conditions: Temperature Relative Humidity	-50°C to +70°C 0 – 100%
Digital Output	RS-232 standard RS-422/485 optional
Sampling Rate Data Output Rate Speed of Sound Baud Rate	200 per second <1 Hz to 200 Hz - variable Operator Optional 4800 to 460,800 adjustable
Rain/Snow	Can be heated
Operating Frequency	150 kHz
Power	+12 Vdc @ <100 ma (9 – 32 VDC)
Dimensions	24.13 cm across arms 49.5 cm top to bottom 3.81 cm (1.5”) Tube OD
Weight	<1.0 kg

"SPAS" Style Probe Data Sheet.
