TriSonicaTM - Mini Wind and Weather Sensor

For those that require a miniature, lightweight, low velocity anemometer, for that small location or for use on that small drone, we now have a new TriSonicaTM - Mini Wind and Weather Sensor, manufactured by Licor

It has a measurement path of just 35 mm (60mm for the TriSonica Sphere) and a weight of 50 grams (225 grams for the TriSonica Sphere).  Owing to its small size, it is a full weather station capable of measuring Wind Speed, Wind Direction, Air Temperature, Relative Humidity, Barometric Pressure, Air Density and Dew Point.  It contains an Accelerometer and/or Level for pitch and roll and a compass.

The TriSonicaTM - Mini Wind and Weather Sensor Solid-State Wind System can also provide measurements of all three dimensions of air flow.  The open path provides the least possible distortion of the wind field.

Four measurement paths provide a redundant measurement.  The path with the most distortion is removed from the calculations to provide accurate wind measurements.

Data emulation allows for the direct connection to existing data loggers and systems without costly changes to associated electronics.  Data output is factory set to user requirements and includes the emulation of many common types of wind sensors.

Features:
  • No moving parts
  • Digital outputs
  • Time proven design
  • Replaces many other anemometers
  • Low power
  • Solid-state digital operation
  • Small Size
  • Light Weight
  • Wind Speed & Wind Direction Output
  • Three Axes Orthogonal Outputs (U, V, W)
  • Sonic Temperature Output
  • Air Temperature / RH Output
  • Barometric Pressure Output
  • Accelerometer and/or Level Output
  • Compass Output
  • Air Density Output
  • Dew Point Output

Sensors

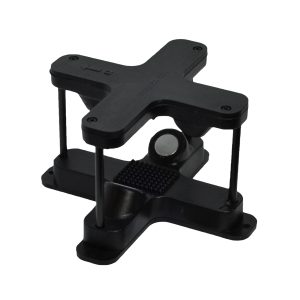

TriSonica Mini Wind & Weather Sensor
with Flat Base (LI-550F)

Available as a Starter Kit with USB (LI-550F-USB)

Specifications:
Size:  9.1cm x 9.1cm x 5.2cm
Measurement Path:  35mm
Weight:  50 grams
Power:  5-36VDC @ 350mW
Digital Output:  RS-232
Data Output Rate:  1Hz, 2Hz, 5Hz, 10Hz, 20Hz, 40Hz
Operating Frequency:  60Hz
Wind Speed:
Range: 0-50 m/s
Resolution:  0.01 m/s
Accuracy (0-10 m/s):  ±0.01 m/s
Accuracy (11-30 m/s):  ±1.0 m/s
Accuracy (31-50 m/s):  ±2.0 m/s
Wind Direction:
Range (U/V):  0-359°
Range (W):  ±15°
Resolution:  1°
Accuracy:  ±1°
Temperature:
Range:  -40° C to 85° C
Resolution:  0.01° C
Accuracy:  ±2.0° C
Humidity Sensor:
Range:  0-100% RH
Resolution:  0.10%
Accuracy:  ±3%
Pressure Sensor:
Range:  50-115 kPa
Resolution:  0.1 kPa
Accuracy:  1.0 kPa
3D Accelerometer:
Range (U, V, W):  ±2g
Tilt (Pitch, Roll):  ±90°
Magnetometer:
Range (U, V, W):  ±50 Gauss
Heading Accuracy:  ±5°
Dew Point Calculation:
Derived from Temperature and Humidity values
Air Density Calculation:
Derived from Speed of Sound and Pressure

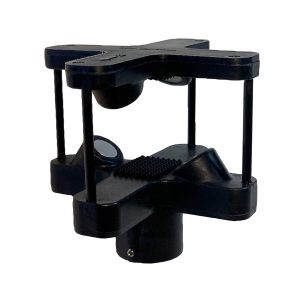

TriSonica Mini Wind & Weather Sensor
with Pipe-Mount Base (LI-550P)

Available as a Starter Kit with USB (LI-550P-USB)

Specifications:
Size:  9.1cm x 9.1cm x 5.2cm
Measurement Path:  35mm
Weight:  50 grams
Power:  5-36VDC @ 350mW
Digital Output:  RS-232, RS-422, UART-3V
Data Output Rate:  1Hz, 2Hz, 5Hz, 10Hz, 20Hz, 40Hz
Operating Frequency:  60Hz
Wind Speed:
Range: 0-50 m/s
Resolution:  0.01 m/s
Accuracy (0-10 m/s):  ±0.01 m/s
Accuracy (11-30 m/s):  ±1.0 m/s
Accuracy (31-50 m/s):  ±2.0 m/s
Wind Direction:
Range (U/V):  0-359°
Range (W):  ±15°
Resolution:  1°
Accuracy:  ±1°
Temperature:
Range:  -40° C to 85° C
Resolution:  0.01° C
Accuracy:  ±2.0° C
Humidity Sensor:
Range:  0-100% RH
Resolution:  0.10%
Accuracy:  ±3%
Pressure Sensor:
Range:  50-115 kPa
Resolution:  0.1 kPa
Accuracy:  1.0 kPa
3D Accelerometer:
Range (U, V, W):  ±2g
Tilt (Pitch, Roll):  ±90°
Magnetometer:
Range (U, V, W):  ±50 Gauss
Heading Accuracy:  ±5°
Dew Point Calculation:
Derived from Temperature and Humidity values
Air Density Calculation:
Derived from Speed of Sound and Pressure

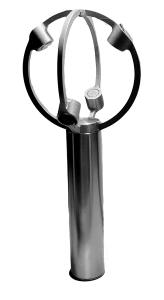

NEW!!  TriSonica Sphere
Wind Flux Sensor (LI-560)

Specifications:
Size: 10.2cm x 10.2cm x 24.9cm
Measurement Path:  60mm
Weight:  225 grams
Power:  5-36VDC @ 500mW
Digital Output:  RS-232, RS-422, UART-3V
Data Output Rate:  1Hz, 2Hz, 5Hz, 10Hz, 20Hz, 25Hz, 50Hz, 100Hz
Operating Frequency:  60Hz
Wind Speed:
Range:  0-50 m/s
Resolution:  0.01 m/s
Accuracy (0-10 m/s):  ±0.01 m/s*
Accuracy (11-30 m/s):  ±1 m/s
Accuracy (31-50 m/s):  ±2 m/s
Wind Direction:
Range (U,V):  0-359°
Range (W):  ±60°
Resolution:  1°
Accuracy:  ±1°
Temperature:
Range:  -40°C to 85°C
Resolution:  0.01°C
Accuracy:  ±2.0°C
3D Accelerometer:
Range (U, V, W):  ±2g
Tilt (Pitch, Roll):  ±90°

*Averaged over 10 seconds

Data Loggers

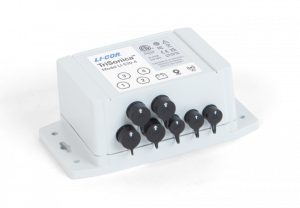

Trisonica Data Logger (LI-570)

TriSonica Data Logger in IP-67 enclosure. Includes four (4) TriSonica sensor connection ports (for any combination of LI-550F, LI-550P, and/or LI-560), two (2) 6-pin connectors for customer-provided radio or GPS, and one (1) 3-pin connector for power. The LI-570-4 will be available in June 2023.



Accessories

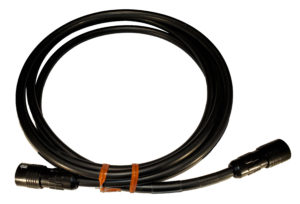

Double Terminated Cables:

1.25-Meter (571D-1)
10-Meter (571D-10)

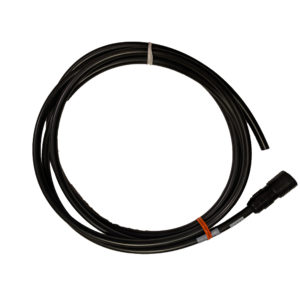

Single Terminated Cable

1.25-Meters (571S-1)

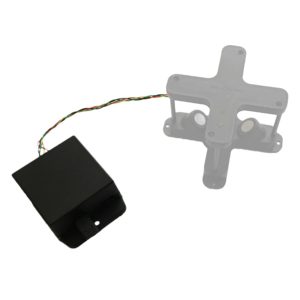

USB Interface Adapter
(w/o TriSonica Mini)

Other Accessories

Cable Assembly Kit (571D-C)

560M TriSonica Sphere Tripod Adapter

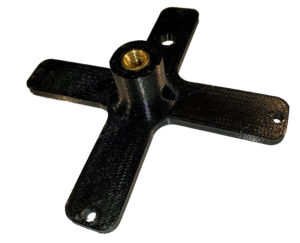

TriSonica Mini Mounting Plate (550FM)

For mounting on a tripod

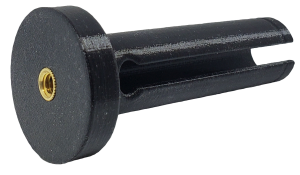

Pipe Mount Tripod Adapter (550PM)
