We are quite capable of adapting and tailoring the probe head to your application.
If there is a requirement for a temperature measurement with some unusual parameters, there may be a solution that will help solve these issues. There might be occasions when there is a requirement for a fast response temperature measurement. Or there might be a requirement for trying to get an accurate temperature measurement with a high resolution temperature reading. Or there might be a requirement for measuring a fast temperature transition. Or there might be a requirement for getting a quick temperature reading without waiting for a normal thermometer to settle down.

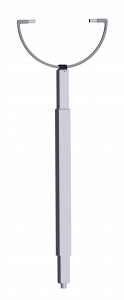

Applied Technologies, Inc. has a probe that can perform unusual requirements, for air or a good deal of the gases, when making temperature measurements. It can provide a high speed temperature, a high resolution temperature, a fast temperature measurement, and a highly accurate temperature.
FEATURES
- Settings operator controlled
- Digital outputs
- Time proven design
- Sensor emulation
- Low power
- Solid-state digital operation
- Different mechanical arrays available
- Custom design array available
SPECIFICATIONS
High speed temperature measurements: <1 Hz to 200 Hz - variable
High resolution temperature:
Nominal 0.01°C
Optional 0.001°C
Accurate temperature:
Absolute ±1.2°C
Nominal ±0.1°C
Possible ±0.05°C
Output:
Data Rate <1 Hz to 200 Hz
Nominal Serial RS-232
Optional RS-422
Optional Binary Included
Baud Rate: 4800 to 460,800
Operation:
Temperature -50°C to +70°C
Relative Humidity 0 to 100%
Power Requirements: +12 Vdc @ <50 mA
(9 – 32 Vdc)
Probe Array: 2.54 cm x 15.9 cm x 17.8 cm
(Size can be adjusted)
Weight: <0.5 Kg
Mounting: 3.175 cm square tube
Download the High-Speed Temperature Probe Data Sheet in PDF format.
If any of this is of interest, or if you have any of these problems to solve, please contact the factory.
By phone 303-684-8722
By e-mail sales16@apptech.com
